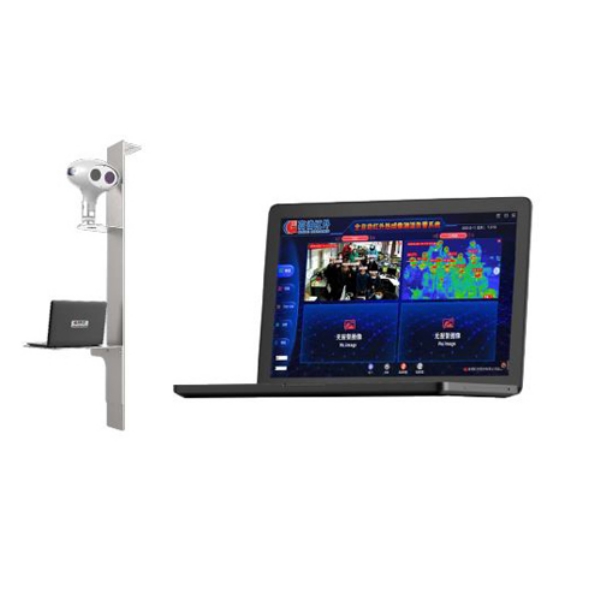

M120A Automatic Infrared Fever Screening System

Covid 19 M120 Kamera System Ein wichtiger Indikator für eine vorliegende Infektion ist die erhöhte Körpertemperatur (im Vergleich zu anderen Personen in der Umgebung), gemeinhin Fieber genannt. Thermografie ist die ideale Methode, um sowohl einzelne Personen als auch große Menschenströme zu scannen. Automatic Infrared Fever Screening System IR detector IR resolution 400*300 Pixel size 17µm Focal Length 9.7mm FOV 38°*28° Frame Rate 25Hz Visible Camera Resolution 2 million pixels Frame Rate 25Hz Temperature Measurement Range -10?~50? Accuracy = ± 0.3 ? (ambient temperature 16 ~ 32 ?) Calibration Built-in and external black body, auto calibration Software functions Parameter settings Alarm threshold setting Face recognition Intelligent face recognition Temperature measurement Face recognition area shows the highest temperature, infrared / visible light image temperature cursor overlay Alarm automatic photo storage while alarm, support image / sound alarm Historical record Support historical alarm image information query Temperature correction Automatic correction of body surface temperature Mechanical interface interface of camera head and host Two-way network interfaces RJ45, one-way power interface Power Voltage AC220V50Hz Power =300W Environmental adaptability Work Temperature -10 ~ 50 ? (suggested ambient temperature 16 ~ 32 ?) Storage Temperature -20 ? ~ 60 ? Work Humidity <90% (non-condensing) Shock 30g 11ms,IEC60068-2-27 Vibration 10HZ~150Hz~10Hz 0.15mm,IEC60068-2-6 Black body Blackbody target surface uniformity =0.1 ? Temperature stability accuracy = ± 0.2 ? (single point) Package Camera head size =50kg (subject to actual delivery)
